Bernie,
The Cineman UK card has four LED's which three of them match L C R and vary in intensity. It sounds like the screen channels are matching them. I don't have my Fairchild hooked up anymore so I can't compare. I know it does work differently then the old ones do but it sounds good. Lots of old films have remixed soundtracks yet still say "Perspecte Sound" on titles and leaders so don't believe all you see. I have had a few say so and not trigger at all. Would love to have heard "Forbidden Planet" on it.

quote:

---

Stephen,
I have one of the boxes you mentioned. It is a Fairchild "Systems Switching Panel" Model 312 and has a multi ganged three position switch with two large treminal strips. To save me the trouble of tracing the multiple gangs do you have a drawing for it. I am using mine in a SA-4 into a CP-100. I picked up another SA-4 and wanted to switch between the two rather then risk dropping one of the boards. Did you get any information for changing speeds, surround jumper or anything else with you card?

---

Sorry, I don't have any info on the switch unit, I read about it in an article in the Widescreen Museum,

CLICK HERE

It is mentioned near the end. There are two other Perspecta articles, plus some on Fantasound in the Museum, all of which make interesting reading. I have just checked my printouts of these articles, there are circuit diagrammes of the integrator and power supply, but not the switch unit.

When I was at the Loew's Jersey I saw this thing, not in the rack, but leaning against the wall in one of the rooms, and immediatly recognised it as the switch which had been described in the article.

I have never even seen a SA-4, was this the chassis to mount an external Cat.150 for surround sound with the CP-100? Could a later processor with a built-in Cat.150 be made to work with one of these, and switch between the two? How about the CP-200, and its mysterious accessory unit? What was that intended for, and is there any way it could be used with a second decoder?

Documentation with the card - nil. Just the card, well packed, in anti-static bag and a padded box, and a receipt for payment. At the time I bought my card, there had been a delay in the production of the latest batch, and I had to wait for a while. I can't remembber the details now, but Dion was very busy at the time, and was out of the country, Susan gave me the option of having the card as soon as it was ready, or of waiting for Dion to return. Maybe I would have got more documention if I had waited. Dion did say that he would send me instructions on setting up various processors with the card, but I have just realised that I have not received them. I will have to get in touch with him to ask about it.

There is one jumper on the card, marked 'surr off' and 'on' the card is shipped with this option disabled, and I have never changed it. there are five leds on the front edge of the card, the top one is red, and indicates a Perspecta track being played. the others are yellow, and indicate left, centre and right channels, and surround, i.e. all three other channels active, and jumper set for surround on. As far as I can make out, there is no delay on the surround channel, and certainly no way of adjusting it. I can't remember now, with normal stereo, is the delay on the Cat.150, or elsewhere in the processor? If the former, then it would obviously not be there when the Perspecta card was in use.

I thought I read somewhere that the filters on the card could be tuned to allow for differing projector speeds, but this is not the case. There are no variable components on the card. I have only once had a problem with this, the first time I tried to use it, the projector had a weird electronic speed control, which had beed set for an odd speed, 25.5 fps I think it was. I have used it with several other 'normal' projectors without problem. If necessary, it would not be too difficult to replace components to re-tune the filters.

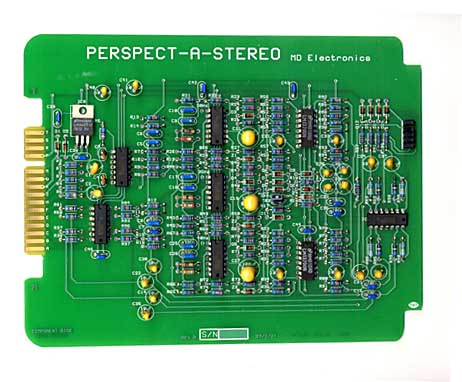

This is what the thing looks like:

As you can see, it is well made, and I think getting the PCBs made up must have been a fairly expensive exercise, for the very small quantity involved.

I don't use the card very often, if you, or others on these forums, would like to borrow it to try, let me know.

I would say that the card works well, but I have not been able to test it against an original integrator. I have only heard one of these twice, firstly some years ago, in this country, with a unit which was not in good condition, and had a lot of hum, and, this year, with the refurbished unit at the Loew's, which sounded much better. The processor at this theatre is a Sony digital one, so it was not possible for me to take my card with me to compare with it directly. If anyone has both an original Perspecta integrator in good condition, and a Dolby processor which uses a Cat.150 decoder, please contact me, and if someone can provide a good Perspecta track, then we can do such a test.

Of the film I have heard, the sound varies greatly, I borrowed two short clips from unknown features, which were in very poor condition, and have run a number of cartoons, plus I heard 'Forbidden Planet', and the various other shorts and extracts which were shown at the Loew's. The tracks varied greatly; on some the process had been well used, on others it was absolutely dreadful, with the sound jumping around all over the place, seemingly at random. Of the Perspecta tracks which I have heard so far, I would say that 'Forbidden Planet was probably the best. Perspecta was quite widely used on cartoons, which is probably the worst place for it, as many of them rely heavily on music, for which Perstecta is not well suited. For dialogue and effects, Perspecta, when well done, can sound surprisingly effective.

It has been calimed that one version of the 'Forbidden Planet' DVD has the Perspecta tones intact on the mono French track, but this has been denied by others. I haven't heard the disk, so I don't know.

There have also been claims that there have been DVD, and possibly Laserdisc, releases where the Perspecta track has been decoded, and re-recorded in 3 channel Dolby Digital, again, I don't know if this is correct, nor which titles or equipment may have been used. If anybody has any more information on this, please let me know.

Considering that the process was only used for a few years, almost 50 years ago there seems to be a surprising amount of interest in Perspecta today.

Whatever the pros and cons of A type Dolby Stereo, it did manage to become widely used, and long lived, something which no other release format since Academy mono optical had done at the time.

Question is, the original integrators, are these the Fairchild units or something pre-Fairchild? And if I can grab one of these, it would be a given that the caps would have to be replaced, correct? Not that that would be any big deal, but I like the idea of a single card that I can just replace in the processor when a PS title comes along. I am wondering if I would be better off putting my efforts into getting a Perspecta-Stereo card.

Frank

 |  IP: Logged

[QUOTE]In a conversation last night, I found out that I may be able obtain an original Perspecta Sound integrator. Since we run retrospective, chances are we will eventually get others titles with PS tones and this time I want to be prepaired and have it working in time.
Question is, the original integrators, are these the Fairchild units or something pre-Fairchild? And if I can grab one of these, it would be a given that the caps would have to be replaced, correct? Not that that would be any big deal, but I like the idea of a single card that I can just replace in the processor when a PS title comes along. I am wondering if I would be better off putting my efforts into getting a Perspecta-Stereo card.[QUOTE]

Another integrator possibly back in use, I've just done a mag installation, and I've recently heard of another theatre, in Germany, which has converted from xenon to carbon. That makes four, one since closed, one private, and two still open two the public. I wonder what will make a comeback next?

Yes, the original integrators were made by Fairchild. The one shown in the museum documents has a solid front panel, with the three meters mounted directly on it, but the one at the Loew's had a large rectangular cut-out in the main panel, with the meters mounted on another panel behind. I don't know if there is any other difference between the two versions.

If you can get an original integrator, it is anybodys guess what condition it might be in. It is likely that at least some of the caps would need replacing, The circuit diagrammes are available in the Widescreen Museum, I'm not sure how readily available the valves (tubes) are, if any need replacing, nor if the test films can be found anywhere, or if the neg still exists, and you gould get one printed.

In a CP-200, I programed the CP-200 to turn on the surround feature and off...and without a doubt, off was preferred! I would say on some films with some delay on the surrounds...it might be a nifty effect but that is it.

As to the RED LED on the card...that is to signify that no control tones are present so it will force a hard center (mono) reproduction...once a control tone is sensed, off goes the RED LED and the other LEDs will show what the card is doing.

On the two reissues showings I worked on (Turner has brought back a couple that showed at the Senator theatre in Baltimore, MD)...the card tracked the tones perfectly...the tones varied in intensisty as with the tones so went the channels.

Steve

quote:

---

As to the PerspectaCard's surround generator...stay away from it!! In fact, some of the cards had the wrong diode stuffed in it (they got a zener and small signal diode swapped). On the PerspectaCard, when all three tracks are active, the surrounds are tuned on to fill up the room...interesting theory (though not mixed that way) but they forgot a crucial element to it...they didn't provide for a surround delay. What you get is this horrible echo effect that is dependent on your auditorium size.
In a CP-200, I programed the CP-200 to turn on the surround feature and off...and without a doubt, off was preferred! I would say on some films with some delay on the surrounds...it might be a nifty effect but that is it.

---

Agreed, I have never used the surround feature, it does seem to be just a gimmick, and was, of course, never done on the original integrators.

quote:

---

As to the RED LED on the card...that is to signify that no control tones are present so it will force a hard center (mono) reproduction...once a control tone is sensed, off goes the RED LED and the other LEDs will show what the card is doing.

---

Yes, same on mine, red indicates normal mono, or Perspecta, and the card automatically switches to the correct mode, as did the original integrators. Three yellows, one for each channel, plus one for the surround, ignore that one.

quote:

---

On the two reissues showings I worked on (Turner has brought back a couple that showed at the Senator theatre in Baltimore, MD)...the card tracked the tones perfectly...the tones varied in intensisty as with the tones so went the channels.

---

What were the titles that you ran? Do you know if the tracks were just re-prints from the original negs, or had they been re-recorded or processed in any way? How did you think they sounded?

 |  IP: Logged

From what I could tell, they did a reprint of originals though they did restore them to the point the colors were perfect...except...for the opticals where they would fade from one scene to the other. You went from a mint perfect picture to what appears to be a cut, the grain goes up, the color goes all whacky, the fad occurs, the cut back to the original and all is well again. Mind you the cut was done on the negative that made the print (the prints were splice free).

I don't think they were reprocessed sound since they were still in perspecta...if they were going to go through that much trouble they would have struck the prints with the modern digital formats or even SVA. Instead they requested Perspecta Decoding and all were pleased.

As to the sound...I was the best damn mono I ever heard! It had a much better fidelity than your plain jane mono film. There was actually some high-end though no bass (naturally since the control tones are down there).

Steve

Frank,
When I got my Fairchild to work I replaced all the caps which is no biggie. The filters needed a heat gun to melt the wax to get to the caps. If memory serves all the caps in each set of filters were the same value and the coils were wound spacific for the 30, 35, 40 Hz trigger tones. I didn't feel I was getting enough tone level so I changed the voltage divider values after the 63 Hz filter to get more tone level. Other then the 40 Hz filter being a little low it worked great. Filters were like old Collins machanical filters we used in ham radio. I think they were +/- 1 Hz. Was so excited to hear it I never got around to playing with the cap values. The Cineman UK card would be an easy way out.

John,
I have a DCG Hare model 360A, s/n 13 but have no information on them. Mine is missing the pre amp, front cover, and power supply. The way things swing out this one was much easier to service and looks to be built like a tank. Do you have any info or parts for these. Power supply should be no problem and I have a brand new late Fairchild one. We found it on a shelf in a Chicago theatre supply 15 or so years ago on a visit.

Stephen,
That is the same card I have and have been told Dolby has one also. Dion told me that they could just change a couple of componants to set of for projector speeds. My card is set up for 24 fps and my motors are fine so I didn't have to get new values.
Dick

 |  IP: Logged

quote:

---

I bet if I threw in an outboard delay for the Perspecta pseudo surrounds like we do on our non-sync sound, it would eliminate the echo and if you set a conservative surround level, just enough for a kind of ambience fill, it may actually be very effective. We pump our CD through a Sansui Vario Matrix Decoder (2 -> 4) and delay the surrounds; it just makes the room come alive with sound; however,the delay really essential if you want to prevent that hollow echo sound -- a particularly erksome problem in a 2500 seat house.

---

Frank, do you have anything with a Perspecta track on it at the moment, or can you get hold of anything? I don't at the moment, I have returned everything I had to its owners.

If you do have any, or can get hold of some, would you like to borrow my card to try? It only takes a minute or so to set up, and is small and light enough to post without difficulty, which is something the original integrators were not!

If you do manage to get one of the originals, and get it working, you could do a direct comparison between the two, which would be interesting, and is something I haven't been able to do.

I need to use the card again next May or June, I don't know the exact date yet, but it's free until then, if you want to try it.

Your idea for the surround might work. I don't know how it works on the card, all I know, is that the surround can be activated when all three of the main channels are active. At what level, I've no idea. Just turning it full on when all three tones are present, at any level, would seem to be a bad idea; maybe it's proportional to the sum of the other three channels, or their average, or something. I don't know. I have no other documentation, and trying to trace the circuit design from the component layout on the card, to see how that part of the thing works seems like hard work. To try it out, I would have to borrow a print from somebody, and a cinema to run it in, and I don't have time to do that at the moment.

Stephen.

The theatres did not want to pay the cost of installing the system.

The public didn't like it.

When done badly, which it seems it often was, it could sound terrible, and this gave the system a poor reputation.

Film makers didn't like using it due to the restrictions it placed on them in the creatin of the track.

The advantages it gave were not thought to be worth the bother.

There were technical problems, such as break through of the tones to the sound channels, or slightly incorrect projector speeds causing strange effects.

Were any of these the true reason, if not, why did it happen? Are there any records of how the system was received by the film going public of the day?
