Topic: Dolby Cat No's

Jock Blakley
Expert Film Handler

Posts: 218
From: Melbourne, Victoria, Australia
Registered: Oct 2011

posted 11-15-2013 07:18 AM

A few numbers that don't appear earlier (or earlier versions of ones listed earlier):

Cat. No. 64 Cinema Equalizer Module (CP50, CP200)
Cat. No. 108 Optical Pre-amplifier Card (CP50)
Cat. No. 110L Link Card (CP50)
Cat. No. 113 Automation Switch Card (CP50)
Cat. No. 150 Decoder Card (stereo with surround) (CP50, CP55, CP65)
Cat. No. 201 Magnetic Input Card (CP200)
Cat. No. 240 Optical Pre-amplifier Card (CP55)
Cat. No. 241 Surround Equalization and Optical Bass Extension Card (CP55, CP65)
Cat. No. 243 Control Logic Card (CP55, standard application)
Cat. No. 247 Front Panel Controls (CP55)
Cat. No. 249 Power Supply Module (CP55, CP65)
Cat. No. 250 Transformer Module (CP55)
Cat. No. 321 Automation Interface Card
Cat. No. 545 Automation Interface Adapter (CP45)
Cat. No. 630 Exciter Lamp Supply for Digital Sound Reader (Cat. No. 699)
Cat. No. 777 Front Panel Circuit Board (CP650)
Cat. No. 794 Dolby Digital Surround EX Decoder with Digital AES/EBU Input Board (CP650)

The Cat. No. 64B modules are also used in the CP55.
The CN 117 Remote Fader Card is also used in the CP50.
The CN 242 B-Chain Card is also used in the CP55
Official name for the CP65 CN 441 module is "Surround Equalization, Subwoofer, and SR-D Interface Card".

| IP: Logged

System Notices
Forum Watchdog / Soup Nazi

Posts: 215

Registered: Apr 2004

posted 05-06-2019 01:30 PM

It has been 1998 days since the last post.

| IP: Logged

David Boomsliter
Film Handler

Posts: 2
From: Los Angeles
Registered: Mar 2019

posted 05-06-2019 01:30 PM

Cat. No. 868 Remote fader (CP750)

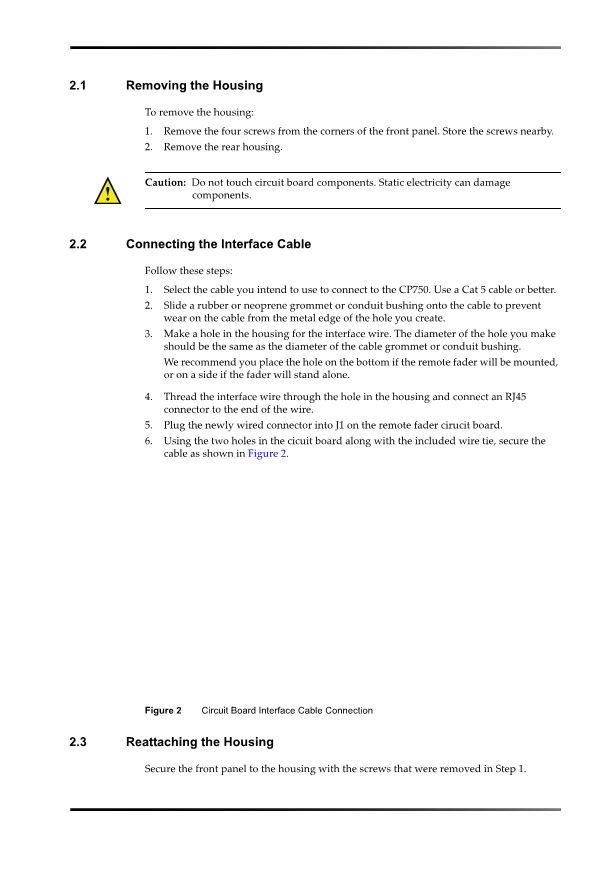

Of which I've been trying to find more information on... there's a manual but it doesn't show the circuit board interface cable connection that it references (missing figure 2). Not using the CP750 so working on the wiring to connect one to a Crestron Pro3 (via RS422) and use an external 15v DC power supply

| IP: Logged

Dave Macaulay
Film God

Posts: 2321
From: Toronto, Canada
Registered: Apr 2001

posted 05-06-2019 05:56 PM

It is a standard ethernet cable RJ45 connector. The CP750 has an RJ45 for the cable, they ship with a jack locking plug so one doesn't connect a network cable to it. I don'y know what that would do but since they bother with the lockout, it probably isn't good.
No clue on the communication protocol or command structure, I don't know if it's published. Not TCP/IP, at least.

| IP: Logged

David Boomsliter
Film Handler

Posts: 2
From: Los Angeles
Registered: Mar 2019

posted 05-06-2019 08:09 PM

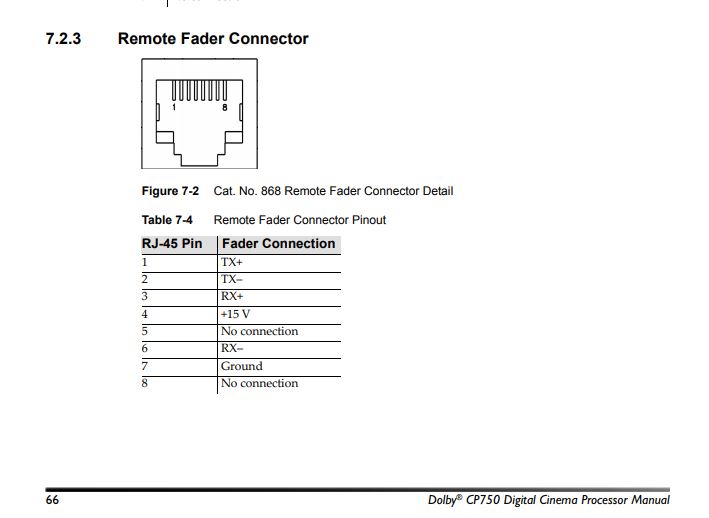

Thanks for the response Dave. I understand it's an RJ45 connection, have the pinout from the CP750 manual which I'll attach here. Just can't find much data for the connection on the fader end..

Worst case I'll just figure it out once I get the fader in hand but would like to prepare ahead of time if possible.

| IP: Logged

Dave Macaulay
Film God

Posts: 2321
From: Toronto, Canada
Registered: Apr 2001

posted 05-07-2019 12:25 PM

The fader has an RJ45.

| IP: Logged

Leo Enticknap
Film God

Posts: 7474
From: Loma Linda, CA
Registered: Jul 2000

posted 05-07-2019 12:39 PM

You forgot the cat666 (pitchfork module card with optional tinfoil shield, CP500).

| IP: Logged

Jim Cassedy
Phenomenal Film Handler

Posts: 1661
From: San Francisco, CA
Registered: Dec 2006

posted 05-07-2019 01:36 PM

That pin-out looks like it follows the standard POE wiring plan,
which reserves pins 4&5 + 7&8 for power transport.

| IP: Logged
