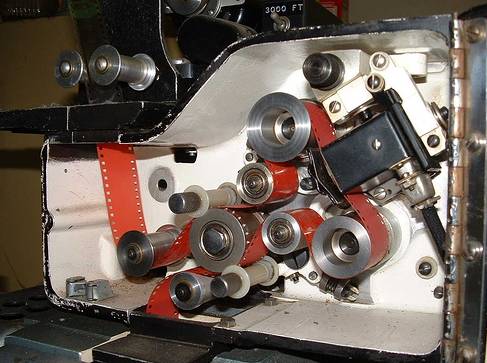

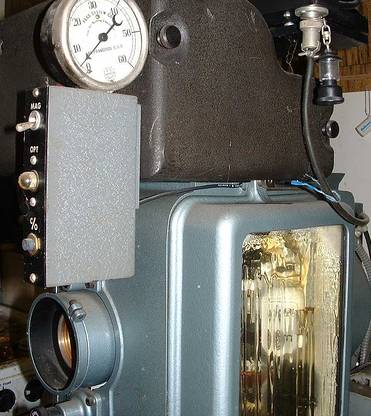

Author Topic: Simplex mag. penthouse, help! System Notices Forum Watchdog / Soup Nazi Posts: 215 Registered: Apr 2004 posted 01-17-2009 10:41 PM                 It has been 1520 days since the last post.  |  IP: Logged Joshua Waaland Jedi Master Film Handler Posts: 800 From: Cleveland, Ohio Registered: Dec 1999 posted 01-17-2009 10:41 PM                     So does anyone have the manual for the Simplex Mag Head yet?  |  IP: Logged Steve Guttag We forgot the crackers Gromit!!! Posts: 12814 From: Annapolis, MD Registered: Dec 1999 posted 01-18-2009 10:05 AM                     Joshua, Here you will find the parts manual on the Simplex XL systems...including the penthouses. Note, this a largish download. But the scan is quite good and bookmarked. I don't believe the adapter plates are in it as the transition items (things that mate various parts) are something Simplex seemingly has always hid! Often they would show up in a Operation Manual rather than in a parts manual. Furthermore, you have to find the right manual. For instance, the pully/gear to mate an XL up to a optical soundhead like the SH-1012 or even the 5-star...which manual do those parts show up in? Steve  |  IP: Logged Gordon McLeod Film God Posts: 9532 From: Toronto Ontario Canada Registered: Jun 99 posted 01-18-2009 12:01 PM                     On the issue of Simplex Penthouses was there a difference to the threading and parts of the original Simplex Penthouse that had the curved top that the magazine sat into and the square box from Strong  |  IP: Logged Jim Cassedy Phenomenal Film Handler Posts: 1661 From: San Francisco, CA Registered: Dec 2006 posted 01-18-2009 12:59 PM                     I guess I got lucky. I don't recall having any problems mounting the Simplex Mag Penthouse to my personal XL several years ago. Four holes in the penhouse and projector castings lined up perfectly. FRONT REAR My installation also includes a steam-pressure guage! (Just for fun )  |  IP: Logged Damien Taylor Master Film Handler Posts: 493 From: Perth, Western Australia Registered: Apr 2007 posted 01-18-2009 01:08 PM                     quote: Paul Vollmers Will the mag unit just mount to the top of the projection head or do I need a mounting bracket? It sure is heavey too. You should see the flywheel in a Vic 8 70mm mag p/house, I'm surprised these things didn't pull the whole projector over!  |  IP: Logged Louis Bornwasser Film God Posts: 4441 From: prospect ky usa Registered: Mar 2005 posted 01-18-2009 02:09 PM                        Remember that the XL mag head and the XL always mated perfectly with each other. That mag head required adapter plates to fit anything else. We once had several XL mag head installed on Centurys. BTW: the path length had to accommodate the audio pre-delay to match audio with video; different for each projector. Louis  |  IP: Logged Gordon McLeod Film God Posts: 9532 From: Toronto Ontario Canada Registered: Jun 99 posted 01-18-2009 03:48 PM                     On a old black XL one needed a plate on top even to put a non XL magazine on  |  IP: Logged James Westbrook Phenomenal Film Handler Posts: 1133 From: Lubbock, Texas, Usa Registered: Mar 2006 posted 01-18-2009 04:05 PM                     The circa 1972 Century SA in the biggest auditorium at the South Plains Cinema had one of these magnetic penthouses mounted on top. The penthouse was removed in 1987 by Ben Kehe after we complained about scratching on the prints: He intentionally misthreaded the penthouse with a new trailer and compared it to the print and that's when we discovered one of the other booth people had been mis-threading through that penthouse. "You don't need that penthouse anyway."  |  IP: Logged Monte L Fullmer Film God Posts: 8367 From: Nampa, Idaho, USA Registered: Nov 2004 posted 01-18-2009 08:47 PM                     (the little battery LED lantern hanging on the back of the penthouse adds an interesting touch to Jim's setup... ) It's great to see projectionists having fun with their trade... -Monte  |  IP: Logged Joshua Waaland Jedi Master Film Handler Posts: 800 From: Cleveland, Ohio Registered: Dec 1999 posted 01-18-2009 10:26 PM                     Thanks for the link to that manual Steve. I have the old black XL's and they do not just mount to the mag heads. There is definitely a bracket missing. If I can get a part number then maybe I can look around for the brackets that I need. Hopefully some theater supply somewhere has a few of them laying around.  |  IP: Logged Dick Prather Master Film Handler Posts: 259 From: Portland, OR, USA Registered: Feb 2002 posted 01-19-2009 02:35 AM                     X-L mag heads come in two basic versions. A smaller one and the first ones made by GPL with sprocket shoes and the larger one with sprocket rollers. The roller heads were the most common. Both work fine. Most Portland theatres used X-L mag and I never had a problem with them. These mag heads were made for X-L projectors and use a four screw pattern on top of the projector and the X-L upper magazine. All other combinations need adaptor plates both top and bottom. Even other Simplex models need adaptors. Simplex also did not have adjustable rollers for sound sync as most other mag heads did so adaptor height was critical. One needs the correct plate for your projector. Should be lots of these laying around. If you are using a X-L upper magazine then you are all set or have a newer Simplex 35. Newer machines have both sets of holes on top. There were adaptor plates to convert the X-L four screw top to the standard two screw upper mounts. These are shown in the X-L manual for numbers. Non X-L mag heads need an adaptor to convert the four hole mount to standard two screw or possible adaptor plate made for that mag head. X-L mag to Century projector needed one. If memory serves: Some Ampex heads also needed adaptors. Westrex R9 mag heads used the same plug in clusters as the X-L. Dick  |  IP: Logged Louis Bornwasser Film God Posts: 4441 From: prospect ky usa Registered: Mar 2005 posted 01-19-2009 02:35 PM                        There is the man with the complete answer! Louis  |  IP: Logged Steve Guttag We forgot the crackers Gromit!!! Posts: 12814 From: Annapolis, MD Registered: Dec 1999 posted 01-19-2009 03:10 PM                     If the top of the penthouse does not have the standard 2-hole pattern (3/8")...then they can be added by merely drilling and tapping. Note, the standard Simplex XL top plate (P-1839) is not correct for the penthouses as it will interfere with the outer casing of the penthouse...however a hacksaw (band saw...etc) can make it work...but drilling/tapping is easier, in my opinion. If I happen upon the proper top plate, I'll post it. Steve  |  IP: Logged
