» Film-Tech Forum ARCHIVE   » Operations   » Film Handlers' Forum   » Projector #2 brightness (Page 2)

This topic comprises 2 pages: 1  2

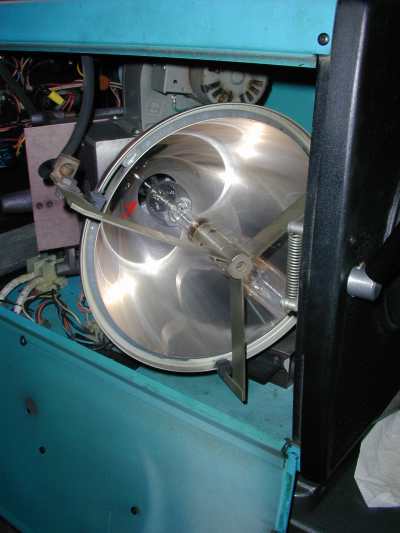

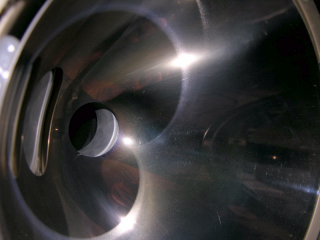

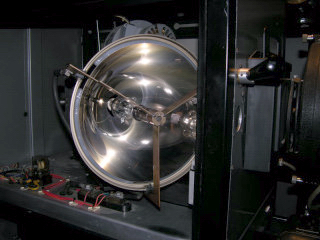

Author Topic: Projector #2 brightness James S. Mellen Film Handler Posts: 22 From: Sandpoint, Idaho, USA Registered: Jan 2004 posted 04-15-2005 07:52 AM                     It has a 10" reflector with a Christie Xenolite CXL-20R.  |  IP: Logged Richard Fowler Film God Posts: 2392 From: Ft. Lauderdale, FL, USA Registered: Jun 2001 posted 04-15-2005 09:53 AM                     An incorrectly aimed dichroic glass filter can overheat the anode fitting of the bulb and may damage the reflector.  |  IP: Logged John Walsh Film God Posts: 2490 From: Connecticut, USA, Earth, Milky Way Registered: Oct 1999 posted 04-16-2005 05:13 PM                     The distance from the back of the reflector (the rear opening 'edge' - not the shroud that encloses the reflector) to the aperture plate should be 19.5 inches. You can double-check that distance is correct by comparing with the other lamphouse. Also, check that the brass adapters on each end of the bulb are the right type ... again, since one lamp works OK, use the 'good' one to compare the adapters, or measure that the bulbs are positioned in the same place. I'm gussing that this is the lamphouse you have...  |  IP: Logged Louis Bornwasser Film God Posts: 4441 From: prospect ky usa Registered: Mar 2005 posted 04-17-2005 07:58 AM                        While the heat filter discussion is very relevant; another thought is that the spider becomes "part of the problem" at about 2000 watts. I have always used the cable that comes with the bulb to reduce the heat on the spider caused by current. More recently there is a reflector replacement that completely eliminates the spider from both Xetron and Big Sky. Not only that but you get a new reflector with a better design: more light. (Better than a heart transplant.)  |  IP: Logged Mark Gulbrandsen Resident Trollmaster Posts: 16657 From: Music City Registered: Jun 99 posted 04-17-2005 09:52 AM                     quote: Louis Bornwasser More recently there is a reflector replacement that completely eliminates the spider from both Xetron and Big Sky. Not only that but you get a new reflector with a better design: more light. (Better than a heart transplant.) Louis, I don't recall a spider in any of the Big Sky conversions we've done, just a front support yoke. The recent Big Sky conversions improve those old dinosaurs quite a bit.... exactly what kit are you talking about? Mark  |  IP: Logged Louis Bornwasser Film God Posts: 4441 From: prospect ky usa Registered: Mar 2005 posted 04-17-2005 09:54 AM                        Syntax error....I mean you can obtain the kit from both of these.  |  IP: Logged Mark Gulbrandsen Resident Trollmaster Posts: 16657 From: Music City Registered: Jun 99 posted 04-17-2005 10:01 AM                     Oh yea, thats kinda what I thought..... I wasn't aware of any others. Just thought you mighta been making a kit of your own. Mark  |  IP: Logged James S. Mellen Film Handler Posts: 22 From: Sandpoint, Idaho, USA Registered: Jan 2004 posted 04-19-2005 08:07 AM                     John, yes that is the lamphouse. We are running 20" from the rear of the reflector (inside opening edge) to the aperture instead of the recommended 19.5".  |  IP: Logged
