» Film-Tech Forum ARCHIVE   » Operations   » Film Handlers' Forum   » Lamp Flicker or (unstable arc?): noticeable during end credits (Page 3)

This topic comprises 3 pages: 1  2  3

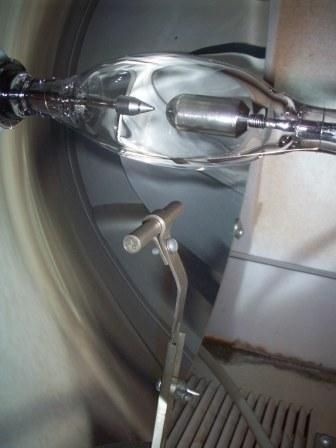

Author Topic: Lamp Flicker or (unstable arc?): noticeable during end credits Monte L Fullmer Film God Posts: 8367 From: Nampa, Idaho, USA Registered: Nov 2004 posted 11-23-2007 01:48 PM                     hard striking could mean tired bulb with high hours, not enough startup voltage coming from the rectifier...etc.. Have you tried a new bulb in that lamphouse to see if the hard striking goes away? Yea, best to leave the magnet alone. Good luck-Monte  |  IP: Logged John Hawkinson Film God Posts: 2273 From: Cambridge, MA, USA Registered: Feb 2002 posted 11-23-2007 09:58 PM                     Peter, what is your no-load voltage (voltage before striking), and what is the wattage and manufacturer/model of your bulb? This is the autostrike? --jhawk  |  IP: Logged Monte L Fullmer Film God Posts: 8367 From: Nampa, Idaho, USA Registered: Nov 2004 posted 11-24-2007 02:53 AM                     Thx John for bringing that autostrike topic out. Yes, the relay on the autostrike board could be going bad as well ... for I've had a couple of them thinking on failing due to pitted contacts in the relays. -Monte  |  IP: Logged Michael Moore Expert Film Handler Posts: 188 From: Dover, DE / USA Registered: Jun 2006 posted 05-10-2008 08:07 PM                        I want to resurrect this issue because it is still persisting. First I know in one of my early posts, that I stated the exhaust was work super well.. Well, I guess that is relative because I have nothing to compare it to. But I do know that when I was using 1000W bulbs I never had this flicker problem with this exhaust system. This is what I changed; I went from 1000W osram bulb, to a 2000W ASL I went from the old Kniesley rectifier to a IREM rectifier. I just wonder if there is enough exhaust now that I have double the wattage? So I have these new possible questions: Could I have a problem with my exhaust fan. Well this is what the lamp house was installed with when I arrived at the theatre in 2000 and I have not changed it out. http://www.rewci.com/fahprain4or51.html I have another one of these fans and wonder if it would hurt if I use my plasma cutter and cut a new exhaust hole just in front of the factory exhaust and install a second fan. Wound this be a problem, maybe too much air flow? I also wanted to know if maybe there is something wrong with the diodes in the IREM and if I should replace them, or what could be a good way to test to see if I need to replace them. Could a faulty diode cause some flicker? I have moved the magnet all over the place and there is no net change in the flicker at the screen either way. Mike  |  IP: Logged Jeremy Weigel Phenomenal Film Handler Posts: 1062 From: Edmond, OK, USA Registered: Mar 2007 posted 05-10-2008 11:13 PM                     quote: Michael Moore Could a faulty diode cause some flicker? Yep. A bad diode will cause a strobing affect on screen if you're lucky enough that the bulb lit. Do you know how to test the diodes?  |  IP: Logged Michael Moore Expert Film Handler Posts: 188 From: Dover, DE / USA Registered: Jun 2006 posted 05-11-2008 06:33 AM                        I don't know how to test the diodes but If someone helps me out I probably have the equipment to do it. Mike  |  IP: Logged Jeremy Weigel Phenomenal Film Handler Posts: 1062 From: Edmond, OK, USA Registered: Mar 2007 posted 05-11-2008 01:09 PM                     I'll take some pics for ya when I go in tonight.  |  IP: Logged Michael Moore Expert Film Handler Posts: 188 From: Dover, DE / USA Registered: Jun 2006 posted 05-11-2008 06:22 PM                        I fixed the problem!!!!! Wow that damn MAGNET!!!! Got thinking about all the things that could go wrong with this lamp house, and nothing added up or sounded right. I then made the discussion to go back to the magnet. This is what I did to it: And well as you can see I really bent the hell out of the magnet, and it worked great! Flicker went away, and the light was more stable, without film and with film! So I guess I solved this and I apologize for all this, I just was a little lost, and all along it was the magnet that I thought was not the problem But thank you to all of you who have helped me so far. Mike  |  IP: Logged
