» Film-Tech Forum ARCHIVE   » Operations   » Digital Cinema Forum   » GDC Masking Automation Hookup Question (Page 2)

This topic comprises 2 pages: 1  2

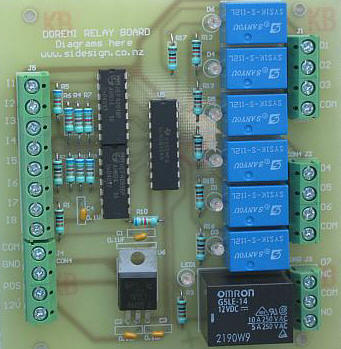

Author Topic: GDC Masking Automation Hookup Question Steve Guttag We forgot the crackers Gromit!!! Posts: 12814 From: Annapolis, MD Registered: Dec 1999 posted 11-16-2010 08:36 PM                     I almost forgot... "Jay at EPRAD is exceptional to work with too."  |  IP: Logged System Notices Forum Watchdog / Soup Nazi Posts: 215 Registered: Apr 2004 posted 01-29-2012 04:43 PM                 It has been 438 days since the last post.  |  IP: Logged Simon Taylor Film Handler Posts: 5 From: Nelson, New Zealand Registered: Dec 2010 posted 01-29-2012 04:43 PM                        GPIO outputs are all open collector optocouplers. I too have had issues with interfacing severs to masking, lights etc when upgrading 35mm plants to DCI. I designed a small low cost relay interface board that has 6 low current pulsed relays and one latching 240v relay for controlling the masking. Installers in this part of the world are all using it. The design is free to download and can be made locally for less than $100. Or I can supply them.  |  IP: Logged Larry Zuverink Film Handler Posts: 98 From: Caledonia, MI, USA Registered: Nov 2002 posted 01-29-2012 08:47 PM                     Agreed Steve, Jay is one of the best guys in industry to work with. We had a very similar situation with our custom masking motors. We did it all with relays but if your not really familiar with this then automation is far better option and also gives you some added expatiation and versatility.  |  IP: Logged
