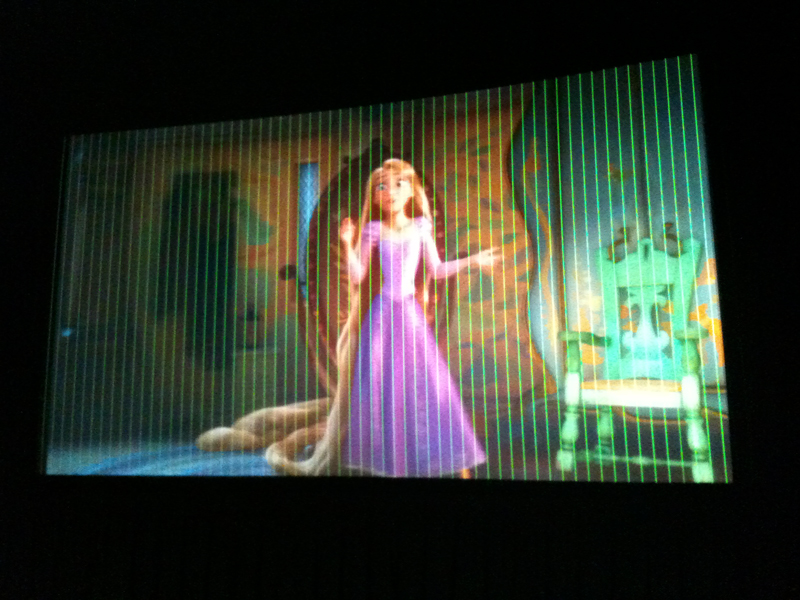

» Film-Tech Forum ARCHIVE   » Operations   » Digital Cinema Forum   » Green lines with NC2000 (Page 2)

This topic comprises 2 pages: 1  2

Author Topic: Green lines with NC2000 Paul Looker Film Handler Posts: 83 From: Pittsburgh, PA/United States Registered: Sep 2009 posted 09-20-2016 08:01 PM                     Mark, I would be very interested in getting that write up about cleaning the nc900 light engine so that our technician could read it over. How far do you travel for service? You really seem to know a lot about working on these.  |  IP: Logged Mark Gulbrandsen Resident Trollmaster Posts: 16657 From: Music City Registered: Jun 99 posted 09-21-2016 06:45 PM                     I used to be a lens tech at Canon before my cinema career. I am still developing the exact methods for this, although it is not really all that hard. The main thing is to work out is to reassemble it exactly as it came apart. Nitrile gloves, proper cleaning solution and wipes are most important. It's still a few months off but someone has to do this because there is no cleaning available on the 900 prisms here in the States yet. Prism has to go back to Japan via NEC and I was told it takes months. New prism's are around 9 grand. Since I am in kidney failure I don't travel as far like I used to. Mark  |  IP: Logged Mike Moreno Expert Film Handler Posts: 200 From: culiacan sinaloa mexico Registered: Jul 2008 posted 10-01-2016 01:06 PM                        i had the same problem with green vertical lines on a Barco 20C recently. i swap ICP´s, replace back panel and nothing. finally i change the light engine from another projector and sadly was the light engine. you think could be the same problem? is there any tech manual to check the formater on this one? Mike moreno Mexico  |  IP: Logged Mark Gulbrandsen Resident Trollmaster Posts: 16657 From: Music City Registered: Jun 99 posted 10-01-2016 02:16 PM                     The NC-2000 I had that was doing this was just an improperly tightened formatter board. They have to be tourqued correctly to the socket. The give away on that was the fact that when the projctor was first turned on it didn't do it. Then after things warmed up it did it for about 6 or 7 minutes, after which it cleared up again on it's own. It went though this cycle on every show. I torqued the green formatter to factory specs and its been running for just about six years now... Since all light engine of the same size use the exact same DMD socket that's what I would try first. It does require a special torque driver kit in order to do it. It would suck to pay the cost of a replacement light engine just because of a lose formatter board. Mark  |  IP: Logged System Notices Forum Watchdog / Soup Nazi Posts: 215 Registered: Apr 2004 posted 06-20-2018 01:51 PM                 It has been 626 days since the last post.  |  IP: Logged Tom Wienholt Master Film Handler Posts: 371 From: Towson, MD, USA Registered: Dec 2002 posted 06-20-2018 01:51 PM                     Any info about replacing a bad formatter board on an NC900c unit? I have replaced many boards on NC1200c prisms, and there are torque recommendations. DO any documents exist for the NC900c prism?  |  IP: Logged Steve Guttag We forgot the crackers Gromit!!! Posts: 12814 From: Annapolis, MD Registered: Dec 1999 posted 06-20-2018 04:26 PM                     There is no way you've replaced lot of boards in the NEC projectors because Mark Gulbrandsen says nothing in GDC or NEC ever fails. You and your patrons must be wrong. The NC900 is a "dig you way into" sort of projector. As for the formatters, the three are color coordinated so the RED board is color red, The blue one is BLUE and the Green one is GREEN. On the up side, there are no convergence adjustments when you are done. The NC900C service manual will give you clues (and torques) but NEC isn't too big on play-by-play instructions.  |  IP: Logged Mark Gulbrandsen Resident Trollmaster Posts: 16657 From: Music City Registered: Jun 99 posted 06-21-2018 11:33 AM                     Usually the green lines are because the formatter board is not properly torqued. I've had that happen three times on brand new NC-2000's and it always appeared after warm up and then went away after about 20 minutes when the gold figers expanded and made contact again. These do not seem to be related to any certain run either as they were spread out over several years... Properly torquing the formatter cured it in all instances. quote: Steve Guttag There is no way you've replaced lot of boards in the NEC projectors because Mark Gulbrandsen says nothing in GDC or NEC ever fails. Thats pretty much how it is. Perhaps a half dozen white power switches and those seem to have gotten better. I actually had one ICP fail of it's own accord after lightening struck the Drive In grounds nearby, and another ICP fail from changing the battery. No other failures to speak of out of 334 projectors, and definately no formatter board failures in any projector except for once in a Christie Series 1. Mark  |  IP: Logged
