» Film-Tech Forum ARCHIVE   » Operations   » Digital Cinema Forum   » Barco "s" series - USB communication (Page 2)

This topic comprises 2 pages: 1  2

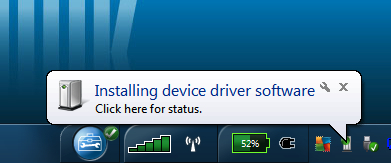

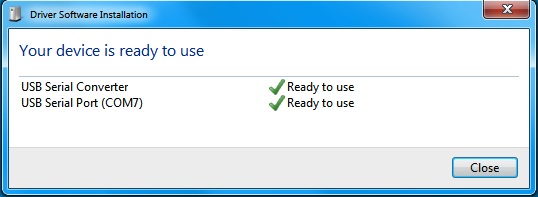

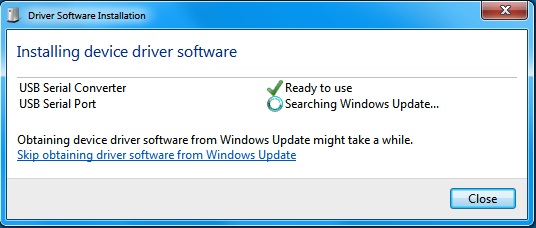

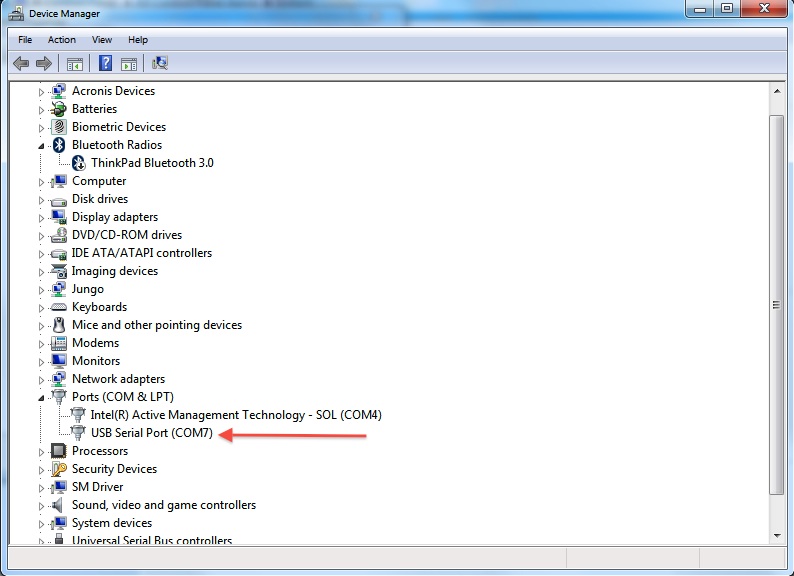

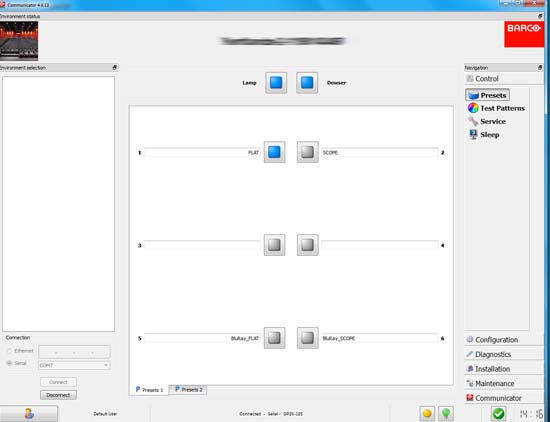

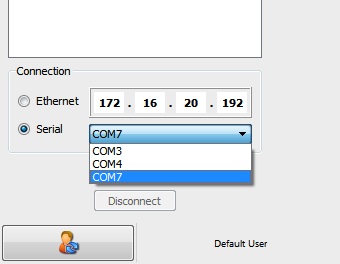

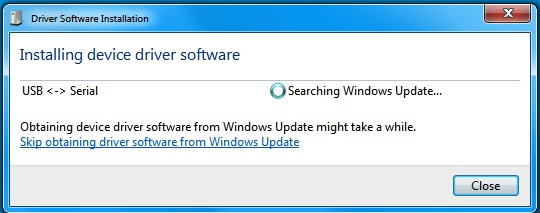

Author Topic: Barco "s" series - USB communication Steve Guttag We forgot the crackers Gromit!!! Posts: 12814 From: Annapolis, MD Registered: Dec 1999 posted 05-30-2014 05:44 PM                     I will post screen shots later but... Yes...it is pretty much automatic. I used a Win 7 pro, 64-bit machine. I was using Communicator 4.8.13. I left Communicator off while the drivers were loading. Upon connecting the USB...I got the "loading new device" thing in the tray. Then it wanted to search the internet for the driver (USB<>serial) Upon finding that it loaded another driver also seemingly relating to a serial driver. Once all of that was done...I had a "new" com port...in my case, COM 7 that was not there before. Then, selecting COM 7 I was able to talk to the 10S via USB. Again, I'll post screen shots later  |  IP: Logged Marco Giustini Film God Posts: 2713 From: Reading, UK Registered: Nov 2007 posted 05-31-2014 06:33 AM                     I am still at 4.7.9  |  IP: Logged Steve Guttag We forgot the crackers Gromit!!! Posts: 12814 From: Annapolis, MD Registered: Dec 1999 posted 06-05-2014 06:42 AM                     Okay...here are the screen shots: Upon plugging in the USB cable I got this in the System Tray (again, Windows 7 Pro, 64 bit). After that, I clicked on the icon in the tray to see what it was doing: Followed by: Then Checking in the Device Manager I have a new COM port, COM 7 Now in Communicator, a new COM 7 port is available: So finally we are connected serially:  |  IP: Logged Pete Naples Phenomenal Film Handler Posts: 1565 From: Dunfermline, Scotland Registered: Feb 2001 posted 06-05-2014 12:29 PM                     I must have had the the same process, just never noticed it happening, or can't remember (small boy child has killed what memory I had!).  |  IP: Logged
