Topic: Tell me about your revenue stream from commercials :-)
|
|
|
|
|
|
|
|
|
|
|
Justin DEntremont
Film Handler
Posts: 7
From: Campbellton, NB, Canada
Registered: Jul 2018
|
posted 11-21-2019 02:41 PM
So we're a 3 screen independant.
We run a loop for 15min prior to showtime. This runs off a standard off the shelf 10 year old $125 Windows computer that's on a shelf in the rack, and is fed into the projector via HDMI or DVI. The playback server has a 15min "black" sequence at the start of each playlist, which switches to the signage computer input when it starts, and back to the playback server after the 15min are up. These computers all run a digital signage software called Rise Vision. While it has a whole lot of functionality that we don't use (templates, social media widgets etc), under the hood it's a system that shows HTML webpages, and allows you to schedule and target them for certain times and certain screens.
We have it setup with 2 parts: 1. We have built a number of in-house custom coded HTML pages that interface with Veezi, our POS system, to get real-time data about what is going on in the theatre (what is playing next on this screen, how many tickets left for this show, how long until it starts, what else is also playing on other screens, what movies are coming soon etc etc). There's 3 different information pages like this.
2. A "Google Slides" presentation embedded as an HTML page, with still slides. This allows us to update the slides instantly, from anywhere. We do up the graphics, save as a Jpg, and just drop that into the Google Slides show.
For approx. $35/week, we sell blocks of 6 slides, which show for 5 seconds each. It's up to the advertiser to decide if they want a single slide shown for 30sec, or 6x5 sec. We do all the graphic design in house.
Here's what it looks like when all put together (you will have to "zoom out" in your browser if your screen is less then 1080p): http://preview.risevision.com/?type=schedule&id=61ff8549-f384-4834-a65c-bd093a09b1e0&_ga=2.65064494.1629043772.1574367300-1424474083.1570567211&showui=false
If anyone is interested using RiseVision software or using our webpages which live update with data from Veezi don't be shy to reach out, be glad to help.
| IP: Logged
|
|
|
|
Justin DEntremont
Film Handler
Posts: 7
From: Campbellton, NB, Canada
Registered: Jul 2018
|
posted 11-26-2019 12:16 AM
Currently Rise Vision is free, though starting December 31st, 2019 they're removing 95% of the functionality from the free version. The paid version is $10/month per screen. I believe I may have a way to continue using it for free (in a slightly different manner), but we shall see.
You can't run it directly on the playback server, you require another computer, but this doean't have to be anything fancy at all. A 10 year old computer from eBay etc. is more then enough. I'm currently using older model Lenovo Thinkcenter desktops which I got off eBay for about $100 each.
These Lenovo computers connect directly to the DVI input's on the projector using a DVI cable, or DisplayPort to DVI adapter. I will note, these computers do require an internet connection to function, but this isn't a problem for us as there is internet available on a switch in each projection booth.
On the playback server, each playlist begins with (after turning on the bulb etc) a 15min "black" placeholder. At the start of this clip, commands are sent to the projector to switch to the DVI input, and the sound system to switch to the non-sync input connected to this computer.
Once the 15min black clip is done, the commnads are sent to switch the projector and sound system back to the playback server input.

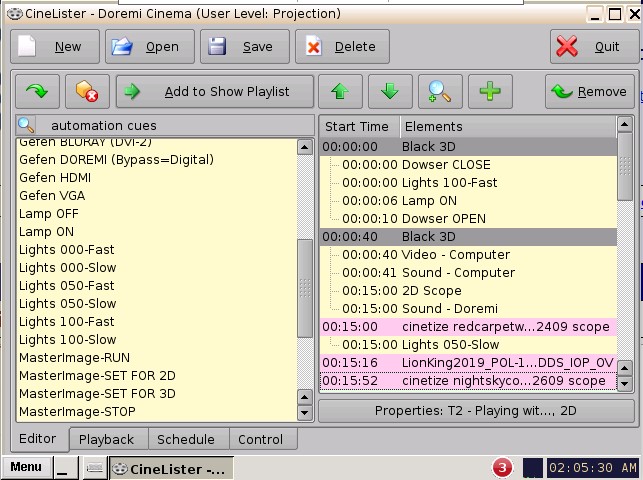

See image below for an example playlist.
I'm not sure what kind of playback server you have (we have Doremi servers), but we have done the entire integration (Adding the new automation commands etc) ourselves, so it's definitely doable if you're good with computers.
| IP: Logged
|
|
|
|
|
|
