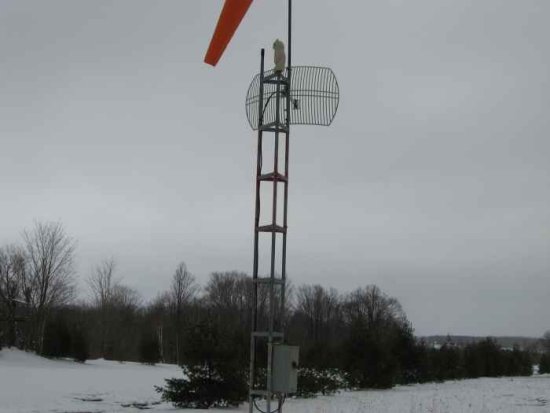

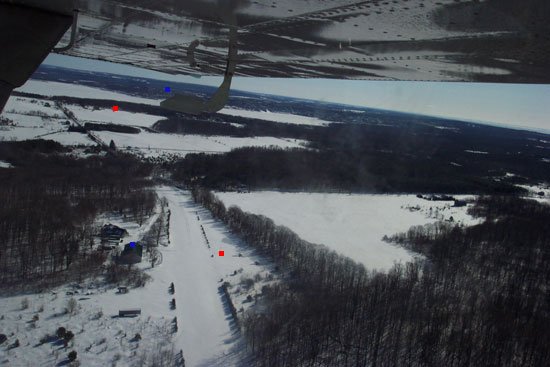

Author Topic: RF Non Line of Sight Questions System Notices Forum Watchdog / Soup Nazi Posts: 215 Registered: Apr 2004 posted 04-17-2007 12:34 PM                 It has been 1146 days since the last post.  |  IP: Logged Daryl C. W. O'Shea Film God Posts: 3977 From: Midland Ontario Canada (where Panavision & IMAX lenses come from) Registered: Jun 2002 posted 04-17-2007 12:34 PM                        I finally got around to setting this wireless link up. Even after moving the factory down the street to get fewer trees in the way (ambitious eh?) I still couldn't get high enough to get a link running between the house and factory. So... plan B... give up on free internet access (well access you're already paying for) and point somewhere else (and pay for their access). I've now got a link running over a few miles between the red dots using a pair of Linksys WRT54GL wireless access points running OpenWRT and a pair of Pacific Wireless 24 dBi grid antennas (mounted for vertical polarization simply because they look nicer that way). EIRP is a little under 4 watts. SNR is around 30 dB. The same gear did a ~15 mile link for fun between the blue dots.  |  IP: Logged Paul Mayer Oh get out of it Melvin, before it pulls you under! Posts: 3836 From: Albuquerque, NM Registered: Feb 2000 posted 04-17-2007 10:56 PM                        Kewl! The antenna with the windsock almost looks like a do-it-yourself glideslope transmission array...  |  IP: Logged Daryl C. W. O'Shea Film God Posts: 3977 From: Midland Ontario Canada (where Panavision & IMAX lenses come from) Registered: Jun 2002 posted 04-17-2007 11:20 PM                        Hmm... it is conveniently pointed in the right direction.  |  IP: Logged
