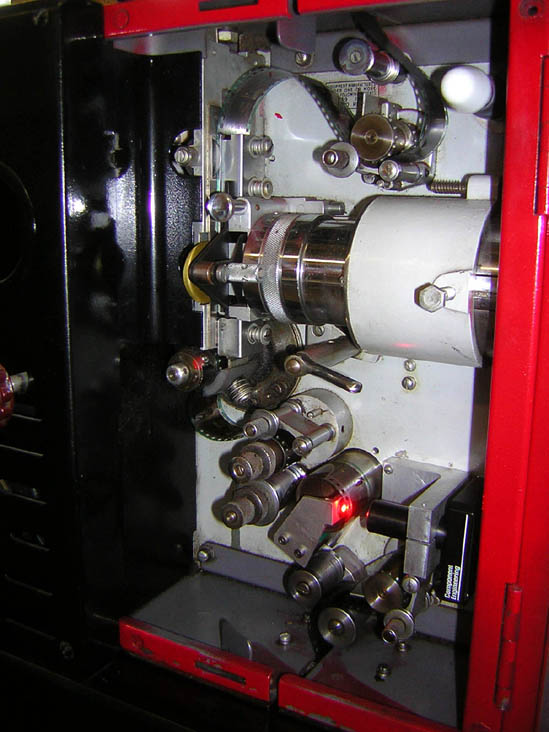

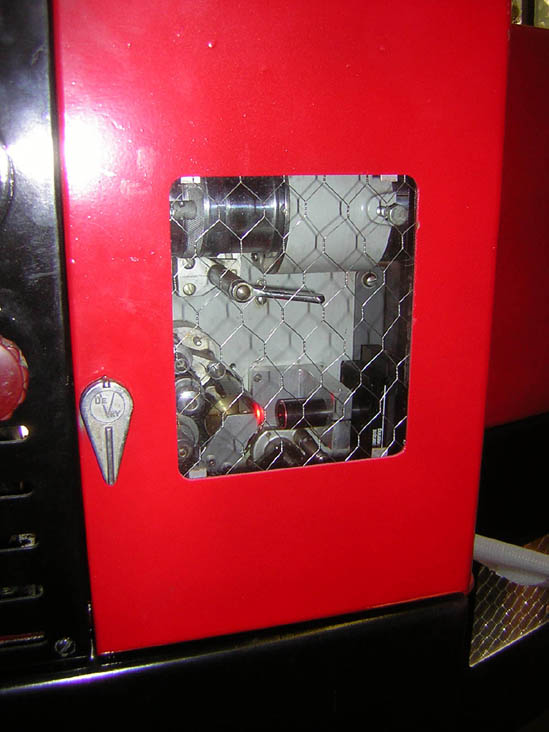

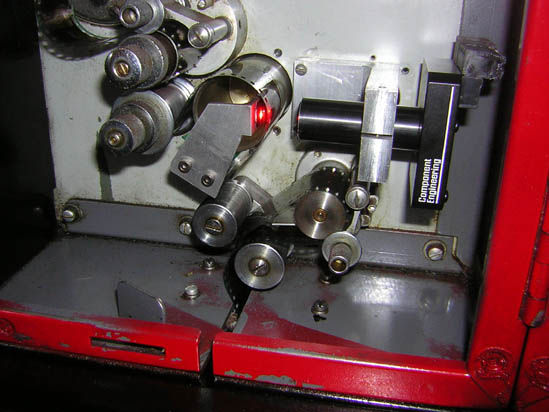

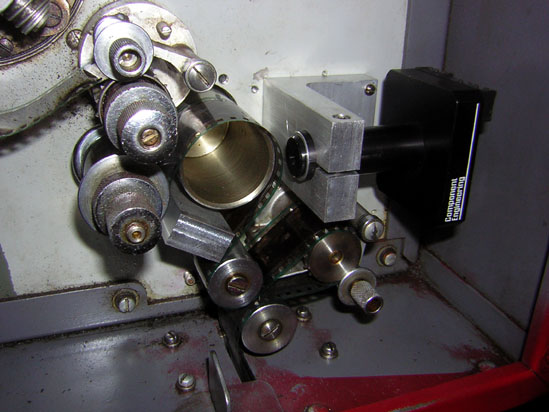

Author Topic: Adding stereo to a Devry? Mark Gulbrandsen Resident Trollmaster Posts: 16657 From: Music City Registered: Jun 99 posted 08-21-2005 03:23 PM                     Alas, after a years hiatis from working on the DeVry stereo mod kit I am finally just a few days away from having the first one complete. People have been bugging me via e-mail for the last couple of months to get this done and make them available. This is in fact a foreword scan mod and will soon be offered as a complete bolt in kit that uses existing mounting holes on the DeVry. The scanner bracket and LED mount foot are completed and all that is left to do is to machine the actual LED bracket that will secure to the LED mounting foot. All parts will have a black anodize finish and the actual production units will probably use the BACP scanner I expect to do alignment tests on the first one next weekend. I have a limited supply of used Infrared LED's that can be utilized or it can be supplied with a standard RED LED if desired. Mark Showing scanner mounted in position. Mounting the scanner in the reverse position would be possible but only by locating the scanner electronics remotely so I chose to keep it simple and mounted it in the forword scan position. Here the LED mount has been Photoshoped in as close to its ultimate finished shape as possible. I opted to keep the inside of the sound drum as accessible as possible to enable it to be easily kept clean.  |  IP: Logged Alan Gouger Jedi Master Film Handler Posts: 501 From: Bradenton, FL, USA Registered: Jul 2000 posted 08-21-2005 10:13 PM                        Hey Mark this is great news. Cant wait to hotrod my Devry  |  IP: Logged Mark Gulbrandsen Resident Trollmaster Posts: 16657 From: Music City Registered: Jun 99 posted 08-21-2005 10:23 PM                     I will post pics next weekend of the completed system. The best part of this is that it literally screws in place using existing holes in the main frame. This will allow anyone to upgrade their DeVry on site. Mark  |  IP: Logged Robert E. Allen Phenomenal Film Handler Posts: 1078 From: Checotah, Oklahoma Registered: Jul 2002 posted 08-22-2005 02:48 AM                     "Yep, they're chain driven. I take it that you ran Motiographs at the drive-in, not DeVrys. (Unless it was a very small drive-in.)" _________________________________________________________________ Gordon is right John. They were DeVrys. But I can't remember the lamphouse.  |  IP: Logged Louis Bornwasser Film God Posts: 4441 From: prospect ky usa Registered: Mar 2005 posted 08-22-2005 08:41 AM                        Most drive in Devry's used Strong Utility or Strong Mogul. Must have been a package. Louis  |  IP: Logged Robert Throop Master Film Handler Posts: 412 From: Vernon, NY USA Registered: Jun 99 posted 08-22-2005 09:04 AM                     I've seen pictures of drive in Devrys with Strong Super 135's as well. Bob  |  IP: Logged Robert E. Allen Phenomenal Film Handler Posts: 1078 From: Checotah, Oklahoma Registered: Jul 2002 posted 08-23-2005 03:44 AM                     Bingo! Robert. I think you're right' The Strong was grey and square right?  |  IP: Logged Mark Gulbrandsen Resident Trollmaster Posts: 16657 From: Music City Registered: Jun 99 posted 08-23-2005 07:36 AM                     Exactly .......  |  IP: Logged Tim Reed Better Projection Pays Posts: 5246 From: Northampton, PA Registered: Sep 1999 posted 08-25-2005 06:14 PM                       I serviced the Park Drive-In at Phillipi, WV in the early 80s. It had DeVrys with Kneisley Xenexs behind them. I think they originally had Super 135s, but I can't be sure. It was a good 70ft. wide screen tower, though. Another WV drive-in (Jane Lew) had DeVrys on an even bigger screen, with Super 135s. The Lovetts built a lot of drive-ins there, and equipped them nearly the same.  |  IP: Logged Mark Gulbrandsen Resident Trollmaster Posts: 16657 From: Music City Registered: Jun 99 posted 08-30-2005 06:54 PM                     Now back to the topic of this thread... adding stereo to a DeVry..... Finally had some time to get the LED mount finished up and mounted on its foot. Still have to wire up the supply which will be located in the rear of the lower compartment. The LED is fully field replacable and is socketed. The LED mount is adjustable vertically as is its distance to the film plane... but its fixed laterally as is normally standard on these devices. Mounting is easily done and is just "Bolt Right In" using original factory mounting holes. We matched the color of the LED as close as was possible to the color of this customers DeVry . Mark  |  IP: Logged Bruce McGee Phenomenal Film Handler Posts: 1776 From: Asheville, NC USA... Nowhere in Particular. Registered: Aug 1999 posted 08-30-2005 10:25 PM                     Mark, that is some kind of beautiful job there. Its also the first time I've seen a DeVry close-up. Nice. Kinda makes me want one real bad. Still running the Holmes 8's.  |  IP: Logged Fred Georges Master Film Handler Posts: 257 From: Lombard, IL, USA Registered: Jun 2000 posted 08-30-2005 11:36 PM                     Congratulations Mark. Superb Job There are still a LOT of these machines used in collector circles & you've solved the major lament with them.  |  IP: Logged Larry Myers Master Film Handler Posts: 371 From: Herndon, VA, USA Registered: Jan 2001 posted 08-31-2005 10:55 AM                 Yes, the pictures look great but I think your not threaded correctly. I destroyed a few trailers that way. The film has to come down stright under the first guide roller as it goes through the fire trap then on to the drive assembly. Does it still look like it's going to be $600 for this setup?  |  IP: Logged Mark Gulbrandsen Resident Trollmaster Posts: 16657 From: Music City Registered: Jun 99 posted 08-31-2005 12:16 PM                     Thanks for the kind comments folks!! This has been a long time comming.... The actual production version of this will use the BACP scanner, keep in mind that this is the prototype scanner and I used what ever junk we had floating around in the shop to build it up. The BACP greatly simplifies the installation by eliminating the need for an external power supply and hence alot of extra wiring. All that you need to power the BACP is the included wall wort and then simply connect its output to your processor. The supply for both the LED and preamp are contained inside the scanner pickup on a user replacable plug in module. It also has signal presence LED's and power supply LED's so one can monitor the reader. Have not set the actual price yet, am still awaiting pricing back from the CNC shop on the 3 different mounting parts. Mark  |  IP: Logged Larry Myers Master Film Handler Posts: 371 From: Herndon, VA, USA Registered: Jan 2001 posted 08-31-2005 12:30 PM                 I have had a lot of experience with CNC work and setup time can be a killer although the per piece price can be very low. I have worked on jobs where the setup is $10,000 and the per piece price is 30 cents each. Great if your making door handles for GM and not so great if it's a handful of parts project. [ 08-31-2005, 04:47 PM: Message edited by: Larry Myers ]  |  IP: Logged
