Film-Tech Forum ARCHIVE: Film-Tech Screening Room (current) pics

my profile | my password | search | faq & rules | forum home

»	Film-Tech Forum ARCHIVE » Community » Film-Yak » Film-Tech Screening Room (current) pics (Page 3)

This topic comprises 8 pages: 1 2 3 4 5 6 7 8

Author

Topic: Film-Tech Screening Room (current) pics

John Wilson
Film God

Posts: 5438
From: Sydney, Australia.
Registered: Dec 1999

posted 02-01-2010 10:40 PM

Hahahahahahahahaha...

| IP: Logged

Demetris Thoupis
Phenomenal Film Handler

Posts: 1240
From: Aradippou, Larnaca, Cyprus
Registered: Apr 2001

posted 02-02-2010 01:44 AM

Don't seem to have EX. No speakers on the back just the booth windows taking the whole lenght!!! or most of it. Ex is a dead breed anyway unless something happens!

| IP: Logged

Mike Olpin
Chop Chop!

Posts: 1852
From: Dallas, TX
Registered: Jan 2002

posted 02-02-2010 02:19 AM

Nice to see that Phil Hill's screening room is coming right along also! [evil]

| IP: Logged

Demetris Thoupis
Phenomenal Film Handler

Posts: 1240
From: Aradippou, Larnaca, Cyprus
Registered: Apr 2001

posted 02-02-2010 02:26 AM

The WD40 is a great addition to the booth. All booths need one.

| IP: Logged

Steve Guttag
We forgot the crackers Gromit!!!

Posts: 12814
From: Annapolis, MD
Registered: Dec 1999

posted 02-02-2010 05:45 AM

Yeah, the scary thing is that he replaced the Raid can with WD40...I wonder if he is trying to control his pests with WD40 now...or perhaps the problem was crickets and instead of killing them...lubricating them stops the annoying chirps!

An annoying "feature" of the CP650 is that once you put in the Cat 790, 791, 778 to deal with DCinema or other AES audio...you get EX for the ride, whether you want it or not! You HAVE to rewire the surrounds (use the Option I/O). And if you don't choose to wire it in EX fashion, then you need to carefully balance out your system to the right levels...an EX enabled CP650 presumes the rear channels are there when you are calibrating your 82dBc per channel...if you don't compensate for that, your surrounds will play low and if you get an EX film...and sound is panned to the rear, you get nothing. I'm surprised that Odyssey Products on one of their 10-billion CP650 breakout boards hasn't come up with a passive solution (resistively combine Ls/BLs and likewise for Rs/BRs so negate this. I'm even MORE surprised one can just tell the CP650 in a set up screen...configure the outputs for just 5.1 That would be just too easy for someone!

Steve

| IP: Logged

Joe Redifer
You need a beating today

Posts: 12859
From: Denver, Colorado
Registered: May 99

posted 02-02-2010 10:55 AM

Phil needs to call Danny and Josh to complete the room for him.

Steve, I don't have those cards you mention, but I can turn EX on and off in my CP650's. With it off it all seems to set up fine. There is no adjustment in the menu for the levels of the back surrounds (unless it is presuming I am doing it at the amp level). Adding these cards forces the EX option to remain on?

| IP: Logged

Steve Guttag
We forgot the crackers Gromit!!!

Posts: 12814
From: Annapolis, MD
Registered: Dec 1999

posted 02-02-2010 12:06 PM

No, you can tell the CP650 to not auto-EX but it presumes you have the rear speakers.

Thus, if you set up your surrounds to the prescribed 82dBc/side...when you play the film in format 10 (non-EX)...the actual level will be closer to 79-80dBc/side since it presumes that the rear channels would have brought it back up to 82dBc.

Steve

| IP: Logged

Sean McKinnon
Phenomenal Film Handler

Posts: 1712
From: Peabody Massachusetts
Registered: Sep 2000

posted 02-02-2010 12:45 PM

I am suprised no one has mentioned the AWESOMENESS of the "Seeburg Background Music System" yet! Awesomeness!
I am more impressed by this device than any other in the system or for that matter the whole system combined!

Seriously Brad, Where in the world did you find this thing? From reading about it on the inter tubes (see link above) I learned that it was a competitor to Muzak but instead of source material being piped from telco lines they sent you thier own cartridges or records or something?

Tell us more Brad! Tell us More!

| IP: Logged

Sean Weitzel
Jedi Master Film Handler

Posts: 619
From: Vacaville, CA (1790 miles west of Rockwall)
Registered: Dec 1999

posted 02-02-2010 01:37 PM

It is indeed awesome. I had never seen anything like it. There are styli on the top and bottom of the tone arm. It plays tracking above or below. The fidelity in the screening room was quite good.

| IP: Logged

Phil Hill
I love my cootie bug

Posts: 7595
From: Hollywood, CA USA
Registered: Mar 2000

posted 02-02-2010 01:53 PM

Listen to a live stream and watch you-tube videos of the Seeburg 1000 at this website.

Info on this cool machine.

| IP: Logged

Brad Miller
Administrator

Posts: 17775
From: Plano, TX (36.2 miles NW of Rockwall)
Registered: May 99

posted 02-02-2010 02:05 PM

quote: Paul Gordon
No 16mm! or Super 8....

Nope, no 16mm, but yes there is a modified Beaulieu 708EL Pro projector I can setup with an external xenon lamphouse.

quote: Sam Graham
So did you sell the old place with the screening room intact?

Intact. Maybe Bobby Henderson will move.

quote: Martin McCaffery
So tell me about this Durra stuff. I've glanced at their website, but I'm curious about what it does better than other alternatives. Doesn't putting sheetrock over it reduce it's sound absorbing qualities?

The Durra is a magic wall. It looks like bits of sawdust glued together, but it just works. There is a furring channel (cavity) between the sheetrock and the Durra. This permits the sheetrock to shake before the sound hits the Durra. I stood about 20 feet away from the front exit door with a movie running extremely loud and passing traffic made much more noise than the leakage from the room. Check it out. Its good stuff.

quote: Mark J. Marshall
What, no CDS??

Sean Weitzel is currently trying to resurrect the CDS.

quote: Joe Redifer
I like the generic unpainted Home Depot door in the back of the auditorium.

I might change it at some point, but it works fine. It is painted though.

quote: Mike Olpin
You guys are building mine next, right?

If you want us to, sure. We are offering $25 off a complete install this month so be sure to jump on the savings!

quote: Joe Redifer
Did you bother with EX?

The plan was to, but the necessary port windows to bring digital into the equation got in the way.

quote: Steve Guttag
an EX enabled CP650 presumes the rear channels are there when you are calibrating your 82dBc per channel...if you don't compensate for that, your surrounds will play low and if you get an EX film...and sound is panned to the rear, you get nothing.

Its called the Basis and that issue is resolved internally.

quote: Joe Redifer
Phil needs to call Danny and Josh to complete the room for him.

So Joe, do you actually think I sat on my ass and had Dan and Josh do the entire room? And we did volunteer to finish Phil's install a few times over the years, but he never lets us.

quote:
I am suprised no one has mentioned the AWESOMENESS of the "Seeburg Background Music System" yet!

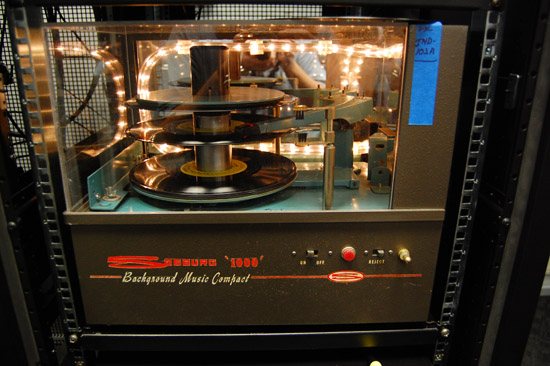

Yes, awesomeness abound! I believe this was a 1960'ish machine and Seeburg was the company that created background music. Muzak took over the market in the 70s and turned it into godawful elevator music, but the Seeburg stuff is awesome.

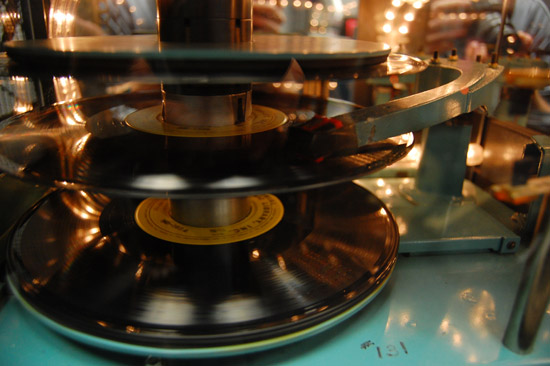

My machine has been modified to have a plexiglass cover, a mirrored background and of course, rope lights so you can see the awesomeness of the mechanism itself. There are a few more things to do to it, but it is pretty impressive as it stands. The content on the records is just as awesome as the machine.

The machine holds 25 or so special records on it and will play for something like 40 hours before it resets the stack.

Here are some youtube videos of other people's Seeburg machines in action:

This one shows resetting the "stack" (but they only had one record on the machine).

This one shows a fully loaded Seeburg machine.

Some music.....
link 1

link 2

link 3 (The Girl from Ipanema)

I've got one in my stack of "Hound Dog" by Elvis. It doesn't get any better than that!

| IP: Logged

Joe Redifer
You need a beating today

Posts: 12859
From: Denver, Colorado
Registered: May 99

posted 02-02-2010 03:36 PM

quote: Brad Miller
So Joe, do you actually think I sat on my ass and had Dan and Josh do the entire room?

Of course not! You took the pictures. [Razz]

| IP: Logged

Tony Bandiera Jr
Film God

Posts: 3067
From: Moreland Idaho
Registered: Apr 2004

posted 02-02-2010 05:04 PM

Brad, Dan and Josh:

Awesome job on that screening room. And thanks for the info on the Durra, that was going to be my next question...

[beer]

| IP: Logged

Damien Taylor
Master Film Handler

Posts: 493
From: Perth, Western Australia
Registered: Apr 2007

posted 02-02-2010 05:43 PM

Are they yellow label Industrials Brad? Industrial is the best library IMO.

| IP: Logged

Brad Miller
Administrator

Posts: 17775
From: Plano, TX (36.2 miles NW of Rockwall)
Registered: May 99

posted 02-02-2010 06:59 PM

Those are definitely the best. I have some of all, but I do prefer the Industrial collection. [Cool]

| IP: Logged
