Topic: Best/worst projector
|
|
|
|
|
|
|
|
|
|
|
|
|
Monte L Fullmer
Film God

Posts: 8367
From: Nampa, Idaho, USA
Registered: Nov 2004
|
posted 03-22-2005 06:08 AM
I know this topic has became a bit outdated but I have to show some of this to watch out for:

Once again, good ol' Strong comes through with this:
Caused by the erroneous design of the Mil2000 machines. (this is not much of a problem with the older "XL/1050" machines)
Being that, due to the new taller case, the upper constant speed sprocket was moved up almost two inches, but keeping the same width distance between trap and gate and the trailing end of the sprocket. Thus, when operators makes their upper loops so tall, that the loop has to "bend" backwards before entering into the trap and gate assembly.

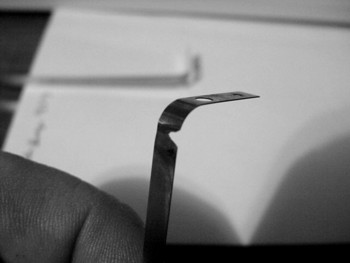

Thus, this massive wear at the top corner of the band. Yet sad, that the rest of the band still has very little wear,

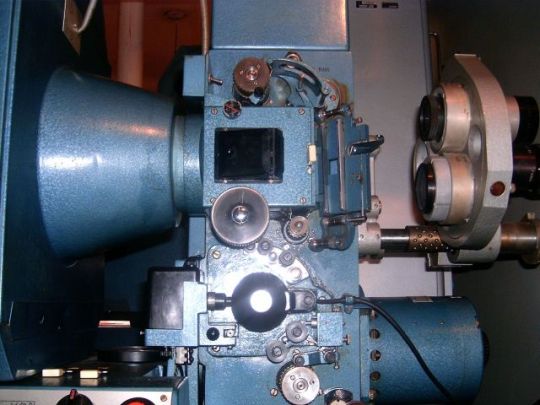

Christie P35's are smart in having the upper constant speed sprocket far enough forward to the front that the upper loop size can be a lot lower, thus the film never has to touch this corner of the band.
-Monte
