Author Topic: Interstellar locations running in 70MM
Brad Miller
Administrator

Posts: 17775
From: Plano, TX (36.2 miles NW of Rockwall)
Registered: May 99


 - posted 10-04-2014 12:54 AM      Profile for Brad Miller   Author's Homepage   Email Brad Miller       Edit/Delete Post
I'm not following your description Jason, but it also sounds like you aren't following mine. Will have to turn to pictures at some point for clarity.

Are you at the Ritz? Are you guys going to run changeovers on this?

 |  IP: Logged

Leo Enticknap
Film God

Posts: 7474
From: Loma Linda, CA
Registered: Jul 2000


 - posted 10-04-2014 02:08 AM      Profile for Leo Enticknap   Author's Homepage   Email Leo Enticknap   Send New Private Message       Edit/Delete Post
quote: Joe Redifer
So aside from Brad's theaters, any word on where the people projecting the 5/70 and even 15/70 are coming from?
I'd have thought that the Cinerama Dome would be OK, because there are enough people floating around Hollywood with hard core 70mm experience from "back in the day". But even here, I'd guess that many won't have handled and run it for years, and will face a learning curve. Before being hired at the Egyptian, the last time I ran 70 regularly (as in, shows every day) was in the mid-90s. Before doing my first actual show here, I spent half a day threading, winding and splicing with reels of scrap/practice footage, and made a few beginner's errors during that time.

I hope that the projectionists running these Interstellar prints will get the opportunity to do that as well. We saw what happened with The Master in London when that doesn't happen: I'm told that the guy running it had been brought out of retirement, and although he had many years of experience with 70mm, they weren't recent years, hence the print got scratched on its first show.

Incidentally, apologies for hijacking this thread, but for those 70mm fans in SoCal, we've got Ghostbusters at the Aero, Santa Monica, on Friday October 24 at 7.30 (link for info and bookings here).

 |  IP: Logged

Jim Cassedy
Phenomenal Film Handler

Posts: 1661
From: San Francisco, CA
Registered: Dec 2006


 - posted 10-04-2014 08:47 AM      Profile for Jim Cassedy   Email Jim Cassedy   Send New Private Message       Edit/Delete Post
quote: William Kucharski
Interstellar 70MM IMAX Film Locations

quote: Scott Jentsch
https://interstellar.withgoogle.com/ways-to-see
Useless links. All they do is keep asking me if I want to download CHROME.
The "continue to website" button doesn't do anything except loop you back
to the main page. I've tried this on 3 computers with same results.

Useless. At this point I don't care about seeimg the movie at all. .

 |  IP: Logged

Martin Brooks
Jedi Master Film Handler

Posts: 900
From: Forest Hills, NY, USA
Registered: May 2002


 - posted 10-04-2014 05:07 PM      Profile for Martin Brooks   Author's Homepage   Email Martin Brooks   Send New Private Message       Edit/Delete Post
quote:

But in other news, I just bought four tickets for the November 8th 6:45pm show at Ziegfeld. This will be my first 5/70mm presentation I attend since 2 years, 2 months and 15 days prior to the 8th. I'm a bit nervous if the Zig crew would handle it properly, but I'm ready for the 5+-hour trip!

While the Ziegfeld was traditionally the best place to see most films in NYC, when I saw "The Master" there in 70mm, the print had dirt end to end. I don't know whether that was the fault of the theatre or the fault of the lab. It was very disappointing. Hopefully they'll do a better job with this film. The Ziegfeld, while still owned by Clearview is now operated by BowTie. I think it was still run by Clearview when they ran "The Master". I don't know whether BowTie operating the theatre will make it better or worse.

In the prime of Dolby 70mm, they frequently would add in special equipment, like additional subwoofers. That was done for both Close Encounters and Apocalypse Now. But that doesn't happen anymore.

Frankly, I think the better presentation is going to be the IMAX 15/70 at the Loews Lincoln Square. The IMAX scenes are going to be cropped in the 5/70 presentation at the Ziegfeld. They'll be shown in the full 1.9:1 aspect ratio at the IMAX.

 |  IP: Logged

Brad Miller
Administrator

Posts: 17775
From: Plano, TX (36.2 miles NW of Rockwall)
Registered: May 99


 - posted 10-04-2014 05:15 PM      Profile for Brad Miller   Author's Homepage   Email Brad Miller       Edit/Delete Post
That's not much different than running a flat 1.85 movie with a 1.33 aperture plate on a movie where the boom mics weren't visible. The actual intended part of the image to be seen is within the cropped "scope" ratio. The rest is simply excess headroom and such.

 |  IP: Logged

Jason Metcalfe
Expert Film Handler

Posts: 134
From: Austin, TX, U.S.
Registered: May 2010


 - posted 10-04-2014 05:42 PM      Profile for Jason Metcalfe   Email Jason Metcalfe   Send New Private Message       Edit/Delete Post
 -

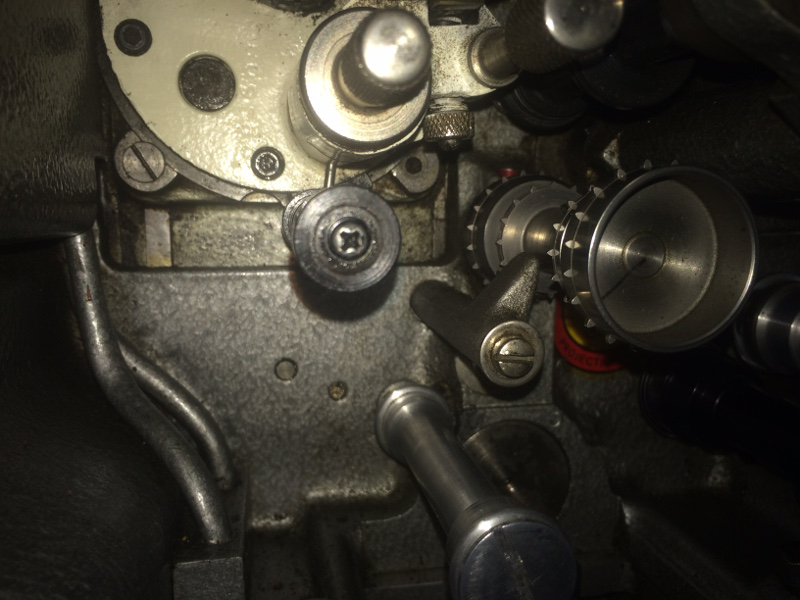

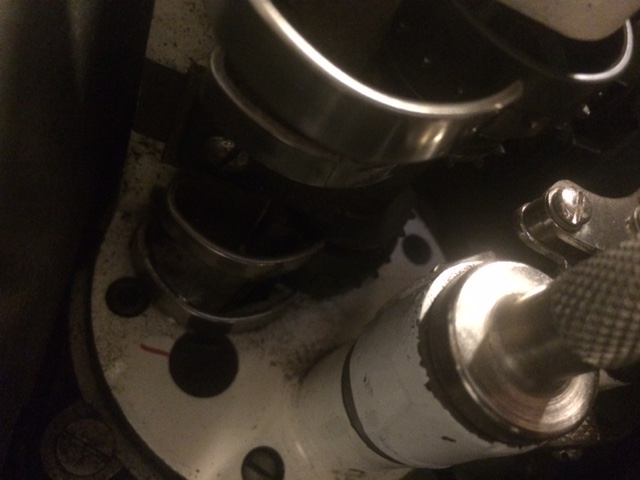

Is this what you meant by loop stabilizer? We thread on the left/top side of this roller

And yes, changeover at the Ritz, we never invested in a 70mm platter system since most of the prints we get can't be built anyway.

 |  IP: Logged

Connor Wilson
Expert Film Handler

Posts: 190
From: Sterling, VA, USA
Registered: Jan 2011


 - posted 10-04-2014 06:11 PM      Profile for Connor Wilson   Email Connor Wilson   Send New Private Message       Edit/Delete Post
Martin, I just contacted Bow-Tie about Interstellar 5/70 at Ziegfeld. I asked if they hired an experienced projectionist for the show and also linked them this thread. I hope they listen.

For some reason, this makes me very very anxious. I just want the money to fly to Dallas and see Interstellar at one of Brad's locations.

 |  IP: Logged

Brad Miller
Administrator

Posts: 17775
From: Plano, TX (36.2 miles NW of Rockwall)
Registered: May 99


 - posted 10-04-2014 07:49 PM      Profile for Brad Miller   Author's Homepage   Email Brad Miller       Edit/Delete Post
Are there still any 70mm prints that HAVEN'T been cut, regardless of the rules put onto them?

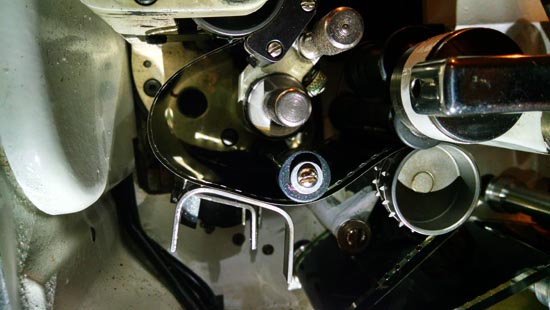

You don't have the loop stabilizer/studio guides/slap guard/whatever-you-want-to-call-it. You only have that idler roller. Thread the loop under it, not over it. Depending on the position of the framing and the "mood" of the polyester print (I say that because the slapping can vary during a reel) will depend on if the loop hits the underside of the intermittent shoe's pivot point 1/4 inch just above it.

This is the threading BTW.

 -

 |  IP: Logged

Steve Guttag
We forgot the crackers Gromit!!!

Posts: 12814
From: Annapolis, MD
Registered: Dec 1999


 - posted 10-04-2014 10:21 PM      Profile for Steve Guttag   Email Steve Guttag   Send New Private Message       Edit/Delete Post
Jason...someone doesn't know how a film stripper works...the one on the lower sprocket (in the projector head) will not only not strip the film...it will actually encourage it to wrap the sprocket as it is currently set!

In Brad's picture...only the lower torture...er loop stabilizers are shown...there are another set that go towards the rear to catch the film as it leaves the intermittent sprocket.

Oddly enough, I found that at the Uptown in DC that for 35mm one HAD to go under the loop stabilizer (I believe its part number is RO-207) or you'd get scuffing in the center of the film since the under-cut area for 35mm is so shallow on that roller...the film would curl into it. If you went under...no problem. However, for 70mm...going over was the most stable. Perhaps it was a humidity/loop size difference in the mid Atlantic area versus the south that makes the response the difference.

For those of you with Norelco AA2s (DP70)...WATCH OUT on the lateral guide rollers for the gate...if you set the leaf spring too tight with polyester/sans mag tracks...the film WILL curl and rub the middle of the gate runner plate. Older runners have much less clearance than later castings. Without the mag tracks not only are you spaced closer to the gate, you loose some rigidity and that film can curl VERY easily. Please be careful.

 |  IP: Logged

Jason Metcalfe
Expert Film Handler

Posts: 134
From: Austin, TX, U.S.
Registered: May 2010


 - posted 10-04-2014 10:55 PM      Profile for Jason Metcalfe   Email Jason Metcalfe   Send New Private Message       Edit/Delete Post
Thanks Brad, you wouldn't happen to have a line on where one could pick up a pair of those would you?
I think we've had a few uncut 70mm prints, Cleopatra maybe, some others with cement splices, but I know what you're saying. Almost 99% of the time now for any print we get (previously built or not) there are explicit instructions not to platter and we do try to stick to that. And that threading thing has been a point of contention that I won't get in to.

Steve - thanks for that, in the manual it looks like it should point towards the center of the axis of that outbound sprocket, correct? And we do have that back set:
 -

 |  IP: Logged

Brad Miller
Administrator

Posts: 17775
From: Plano, TX (36.2 miles NW of Rockwall)
Registered: May 99


 - posted 10-04-2014 11:27 PM      Profile for Brad Miller   Author's Homepage   Email Brad Miller       Edit/Delete Post
Steve, that's a picture from one of the extra JJs. I do have those under the intermittent in the screening room, but I've never felt they were needed as the film doesn't ever hit them. Loop sizes make all the difference, but there is definitely a big difference between acetate and polyester behavior down here closer to the equator. I've never ran 70mm of any sort north of the Dallas area, so your theory is certainly possible.

Also note depending on the intermittent depends on where the various guides and roller sit with respect to each other and the intermittent. Not sure what was going on with Century during the changes, but the pic I posted above runs VERY quiet and smooth.

And yes everyone please as Steve points out, please be careful. It only takes one pass to ruin a print. Paramount shipped me the only surviving reel of Titanic in 70 for me to test with and it was in DEPLORABLE condition. (Yup that's right, they don't even have a complete print in the US anymore, just this one odd reel.) How it got this bad is beyond me, but we're talking heavy scratches on the base and emulsion side (vertical, horizontal and a standing set of diagonal scratches off center). It's perforations are stretched, and the damage varies throughout the reel. There were no leaders, the film has heat damage, in ungodly dirty and so forth and so on. The condition at the ends of the reels from, well let's be honest, morons who don't know how to handle film...ugh, there are simply no words.

There is simply no excuse for this. If this reel was run for someone that had never seen 70mm they would've joked like we do when talking about old beaten up 8mm home movies. People handling these extremely rare prints have GOT to learn how to do it right. Again, it only takes one pass to ruin a print, but this reel has clearly been mishandled by many different venues. With various theaters installing 70mm so they can have some sort of marketing or booking edge on their competition, and then laying marks on one-of-a-kind archive prints because they don't have someone there that truly knows how to setup and run 70mm is just infuriating. 17 years ago I had the only 70mm Titanic print that went back with zero damage whatsoever (as John Pytlak verified and Paramount backed up in their print replacement report) and I played that for 5 months and 2 weeks (on a platter too). I wonder how many of these Interstellar prints won't leave their playdates in exactly pristine condition, and I wonder how fast they will get destroyed in revival 70mm shows. [Frown]

 |  IP: Logged

Leo Enticknap
Film God

Posts: 7474
From: Loma Linda, CA
Registered: Jul 2000


 - posted 10-05-2014 12:32 AM      Profile for Leo Enticknap   Author's Homepage   Email Leo Enticknap   Send New Private Message       Edit/Delete Post
quote: Steve Guttag
For those of you with Norelco AA2s (DP70)...WATCH OUT on the lateral guide rollers for the gate...if you set the leaf spring too tight with polyester/sans mag tracks...the film WILL curl and rub the middle of the gate runner plate. Older runners have much less clearance than later castings. Without the mag tracks not only are you spaced closer to the gate, you loose some rigidity and that film can curl VERY easily. Please be careful.
And especially if you're running AAs/DP70s in an arthouse/cinematheque type venue that is constantly swapping between acetate and polyester prints. My routine is now after every changeover:

1. Check film coming out of the bottom for scratches with a flashlight (both sides).
2. Glance at the complete film path to check that the film hasn't jumped out of any roller flanges or recesses and is rubbing on anything.
3. Check on screen for focus and framing
4. Glance at the AP20 display to ensure sound has changed over successfully
5. Back off the gate pressure until the picture just starts to look unstable, then tighten it again just as far as is needed for the wobble to go away.
6. Close douser on outgoing machine.
7. Clean and rethread outgoing machine.
8. When ready for the next changeover and if time allows, rewind finished reel, checking again for scratches, edge and perf damage while doing so.

With us changing between acetate and polyester prints all the time, I think a gate pressure check, and setting it to the lowest possible pressure needed for a stable picture, is necessary. The DP70/AA is a wonderful projector mechanism in many respects, but it's not forgiving to an operator who isn't giving it 100% attention.

 |  IP: Logged

Paul Gordon
Jedi Master Film Handler

Posts: 580
From: Ottawa, Ontario, Canada
Registered: Aug 2005


 - posted 10-05-2014 07:53 AM      Profile for Paul Gordon   Author's Homepage   Email Paul Gordon   Send New Private Message       Edit/Delete Post
A lot of talk about JJ's but there is a lot of Vic 8's still around and some can still do 70mm. Dos and dont's for 70 on a Vic would be good to post.

Oh BTW Brad Paramount had a good print of Titanic in Canada a couple years ago. I think they sent it back to the States when they junked all their other 70 prints...Star Trek, Last Crusade, Top Gun, Untouchables.... etc.

 |  IP: Logged

Jim Cassedy
Phenomenal Film Handler

Posts: 1661
From: San Francisco, CA
Registered: Dec 2006


 - posted 10-05-2014 10:28 AM      Profile for Jim Cassedy   Email Jim Cassedy   Send New Private Message       Edit/Delete Post
quote: Leo Enticknap
Check film coming out of the bottom for scratches with a flashlight (both sides).
Ahhh, yes Leo- - A good, bright LED flashlight is worth its' weight in gold when
it comes to finding scratches in a dark booth when running reels or platterers.

While I still run a lot of film, I'm doing almost 100% change-overs now.

But bouncing a good, strong light-beam off both sides of the film at
various points in the threading path is well worth the effort.

Here's a couple of pictures taken several years ago:

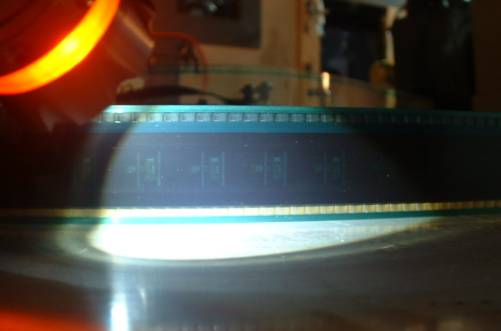

Exhibit A: "Good" -
 -

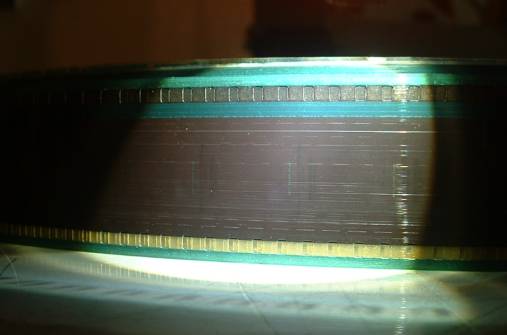

Exhibit B: "Bad"
 -
-jc-

 |  IP: Logged

Brad Miller
Administrator

Posts: 17775
From: Plano, TX (36.2 miles NW of Rockwall)
Registered: May 99


 - posted 10-05-2014 11:58 AM      Profile for Brad Miller   Author's Homepage   Email Brad Miller       Edit/Delete Post
Jim, exhibit A is not "good". It was ran on one of those damned "boat anchor" Simplex/RCA type soundheads. See the marks from the patented "dirt embedder roller"?

 |  IP: Logged
